NMQ type stainless steel magnetic pump
★NMQ Type Stainless Steel Magnetic Pump Technical Parameters
Mouth diameter: 25-300
Flow rate: 2 m3/h ~ 1200 m3/h
Lift: 2m ~ 125m
Speed: 2950r/min 1450r/min
Operating temperature: -10oC ~ 120 oC
Operating Pressure: ≤25 MPa
★Overview of Mag Pump:

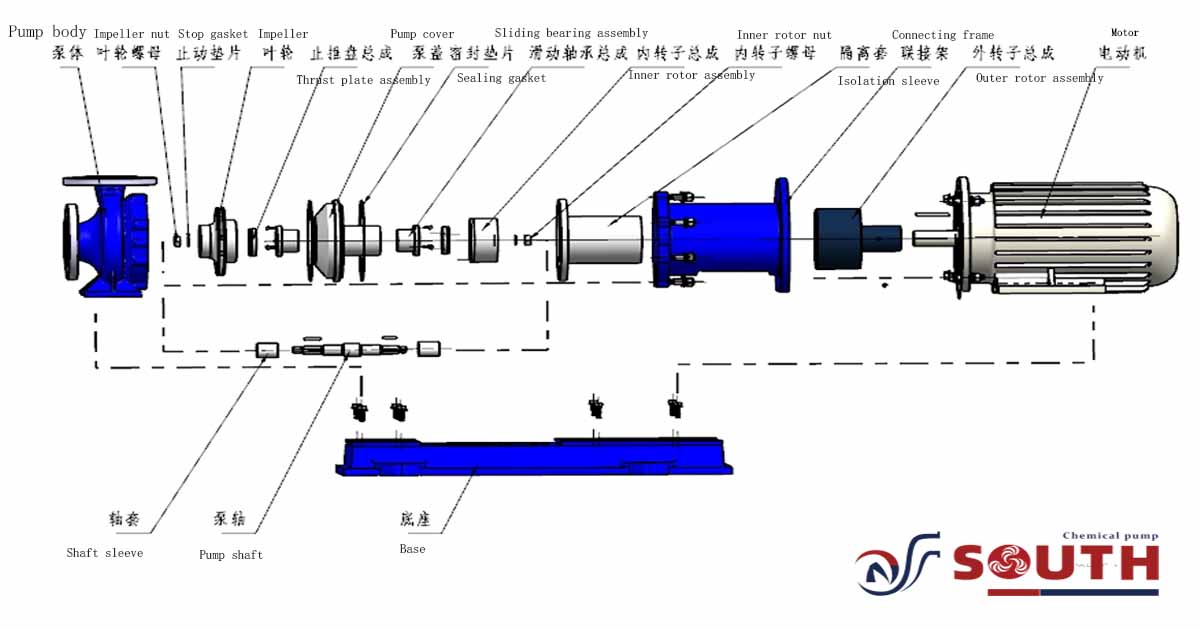

NMQ type magnetic drive centrifugal pump (referred to as NMQ magnetic pump) is a new type of completely non-leakage corrosion-resistant pump researched and developed by our company in accordance with the current user and market demand, combined with the existing magnetic pumps in the market on the basis of research and development. It is mainly composed of electric motor, magnetic coupling and corrosion-resistant centrifugal pump, which is utilizing magnetic coupling to transfer power and is completely leakage-free. Characterized by the use of the motor to drive the outer magnet of the magnetic actuator rotation, the magnetic line of force through the gap and the isolation sleeve, acting on the inner magnet, so that the pump shaft and the motor rotate synchronously, contactless transmission of torque. At the power input end of the pump shaft, as the liquid is enclosed in the static isolation sleeve, there is no dynamic sealing, thus eliminating the phenomenon of running, risking, dripping and leaking which is inevitable in the petrochemical industry, and realizing no leakage at all.
★Magenetic Pump Product Description:
adopts ISO2858 and HG/T2730 standards, the pump interface dimensions are in line with the replacement of IH, CZ and other chemical pump types, with good throughput, high efficiency and low vibration.
adopts neodymium-iron-boron or samarium-cobalt permanent magnet material as inner and outer magnets, with high magnetic efficiency and strong high temperature resistance.
According to the technical requirements, it can be designed into two types of direct connection and split type, and the heat preservation device can also be added for the crystallization medium.
building block structure is very easy to disassemble and repair, greatly reducing the professional requirements for maintenance personnel.
can be configured with idling protector according to user requirements to avoid damage problems caused by idling.
absolutely no leakage completely solve the leakage problem of sealing pumps, is also the best product to replace the shielding pump.
★Mag Pump Usage:
Applicable fields: environmental protection, petroleum, chemical, food, biopharmaceutical, electric power, metallurgy, aerospace and other industry fields, such as oil refineries, ethylene plants, natural gas processing plants, various types of chemical plants, pharmaceutical factories, nuclear fuel plants, nuclear power plants and so on.
Applicable processes: clean, flammable, explosive, volatile, toxic, valuable liquids and other requirements of no leakage and the medium does not allow the sealing of the occasion of pollution.
★Pump Material:
Pump overflow parts according to the use of working conditions and user requirements can be respectively 304, 304L, 302, 321, 316, 316L, 904, titanium alloy, nickel-based alloys and other types of corrosion-resistant materials. If there are special requirements, the unit can be designed and manufactured according to the working conditions.
