IMD Type Fluorine Plastic Magnetic Pump
★Use temperature：-20℃ ~ 150 ℃
★Flow Rate：3m³/h ~ 400 m³/h
★Head: 15m ~ 125m
★Overview of Magnetic Pump:
IMD pump is a high-power, high-head fluoroplastic magnetic drive pump, pump appearance and installation dimensions are designed and manufactured in accordance with ISO international standards, all specifications are directly connected to the motor, supported by the intermediate bracket, compact structure, easy to dismantle, the main parts of the steel lined with F46, the pump body of high strength, the use of high-performance magnetic material “neodymium-iron-boron” to do the internal and external magnets, the isolation sleeve is imported with “NdFeB”. High strength of the pump body, the use of high-performance magnetic material “neodymium iron boron” as internal and external magnets, the isolation sleeve is made of imported non-metallic materials, greatly reducing the magnetic eddy current loss, can be transported to a high concentration of density greater than 1.9t/m3 of strong corrosive media. The drive form is magnetic indirect non-soluble drive, and the inner and outer magnets are completely isolated by isolation sleeve, so that the pump cavity is in a completely closed state, thus completely eliminating the phenomenon of dripping and leaking, and will never contaminate the use of the site, which is especially suitable for the transportation of strong acid, strong alkali, strong oxidizing, flammable and explosive, toxicity, and volatile mediums. The excellent performance and low price of IMD series magnetic pumps have become the first choice for users to replace imported magnetic pumps which are expensive and difficult to supply spare parts in many projects.
Uses of magnetic pump:
IMD series magnetic pump, flow: 6-120m3/h; head 15-40m, suitable for conveying strong corrosion, flammable, toxic, volatile chemical media.
Use temperature: -20-100, the pump is prohibited idling.
Design features of Fluorine Magnetic Pump:
Leak-proof design and working principle
Eliminate the shaft seal, the use of magnetic coupling indirect drive, completely eliminate the trouble of dripping, never pollute the use of the site.
As the overflow part of the pump is made of fluorine plastic alloy, it can continuously convey any concentration of acid, alkali, strong oxidizing agent. It can continuously convey any concentration of acid, alkali, strong oxidizer and other corrosive media without any damage.

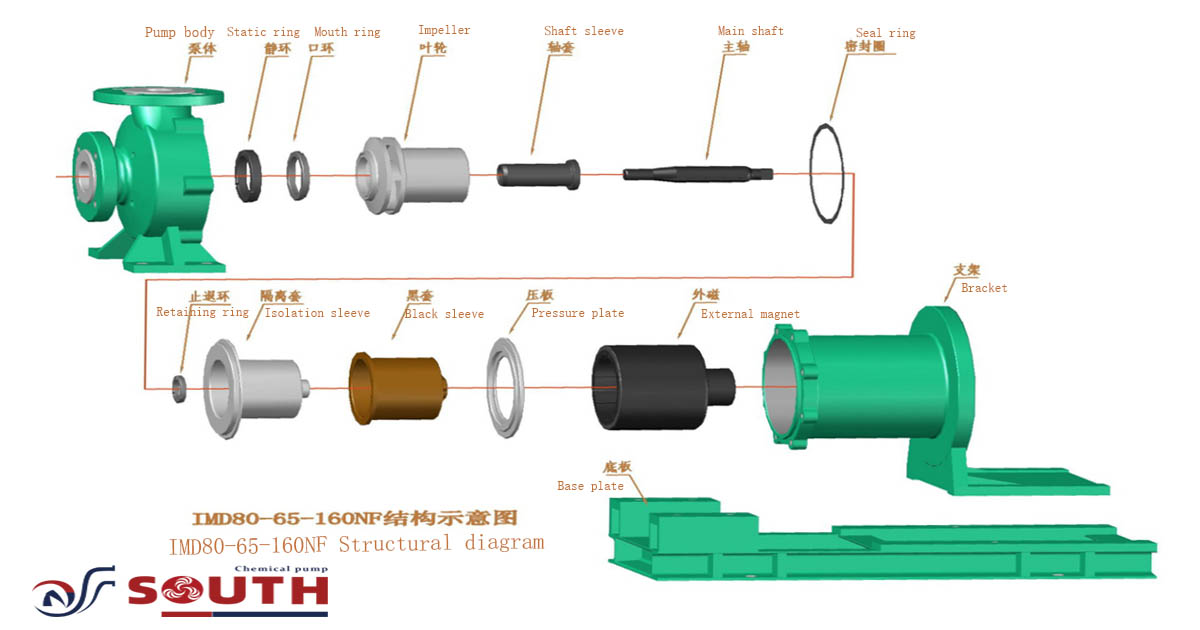

The driving device adopts active permanent magnet coupling directly mounted on the motor shaft, the pump chamber is completely closed, and the impeller is indirectly driven to rotate through magnetic coupling. Compact structure, safety and energy saving.
Durable pump body structure
Although the liquid contacting part is fluoroplastic, the pump body shell is metal material, so the pump body is strong enough to withstand the weight of the pipeline and mechanical impact.
Applications of industrial pumps:
First, chemical industry
In the chemical industry, magnetic pumps are often used to convey various corrosive liquids, such as acid, alkali, salt and so on. Since magnetic pumps have no mechanical seal, there is no leakage, thus avoiding environmental pollution and material waste. In addition, magnetic pumps are available in a wide range of material choices, which can adapt to the corrosion of different chemicals, so they are an important conveying equipment in the chemical process.
Second, pharmaceutical field
In the pharmaceutical industry, magnetic pumps are widely used in the manufacturing and conveying process of drugs. The non-leakage characteristics of magnetic pumps ensure the purity and safety of drugs, thus meeting the high requirements of the pharmaceutical industry for hygiene and quality. In addition, magnetic pumps can be customized to meet the special conveying needs of different drugs.
Third, the food industry
Magnetic pumps also play an important role in food processing and conveying. Because magnetic pumps do not have mechanical seals, so you can avoid bacteria and other contaminants in the food into the pump body, so as to ensure the hygienic quality of food. In addition, magnetic pumps can also be adapted to different food media, such as milk, juice, wine, etc., so they are widely used in the food industry.
Fourth, the field of environmental protection
In the field of environmental protection, magnetic pumps are used to deal with all kinds of wastewater, waste liquids and so on. The non-leakage and non-pollution characteristics of magnetic pumps make it effective in preventing secondary pollution in the process of environmental protection. At the same time, the high efficiency and energy saving characteristics of magnetic pumps also make it in the field of environmental protection has a broad application prospects.
Factory Stock:
In view of the rapid changes in the market and the diversity of customer needs, we have established a large inventory system covering a wide range of specifications and models of magnetic pump products. No matter how urgent your project needs are, we can respond quickly to ensure on-time delivery, so that your production line continues to operate efficiently and seize every market opportunity.
Choosing us is choosing a reliable partner. Let’s work together to create a better future in fluid transfer! Inquire now to start your customized magnetic pump purchasing journey!
