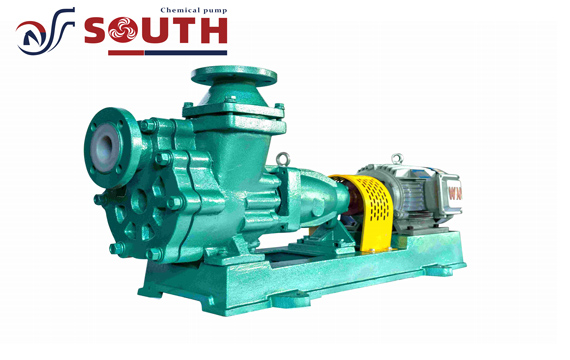

Designed instruction of FZB fluorine plastic lining self- priming centrifugal pump
The FZB Series Fluorine Plastic Self-Priming Centrifugal Pump represents our company’s latest advancement in anti-corrosive technology, building upon the traditional ZX and ZW Series Self-Priming Centrifugal Pumps by integrating our IHF Lining Fluorine Plastic Centrifugal Pump. This enhancement not only maintains the self-priming capabilities of the ZX and ZW Series but also significantly improves its anti-corrosive properties. The pump is designed with flanges that meet international standards, and it uses an external advanced bellows mechanical seal, achieving a self-priming height of 4 meters. When equipped with a non-return foot valve, the pump can reach a self-priming height of 1 to 3 meters. It only requires an initial filling of liquid into the pump shell. With a liquid level as low as 1.5 meters, this pump is an excellent choice to replace submersible pumps, offering economic advantages, ease of maintenance, long service life, and low operating costs.
Advantages of fluorine plastic lining self- priming centrifugal pump
Enhanced Corrosion Resistance: The pump offers improved anti-corrosive performance by integrating fluorine plastic lining technology.
High Self-Priming Height: Achieves a self-priming height of up to 4 meters, extendable to 1-3 meters with a non-return foot valve.
Compliance with International Standards: The design includes flanges that conform to international standards.
Cost-Effective Alternative: Serves as an economical replacement for submersible pumps, with lower operating costs.
Ease of Maintenance: Requires minimal initial setup and offers convenient maintenance with a long service life.
Application areas of fluorine plastic lining self- priming centrifugal pump
Ideal for industrial processes that involve neutral or corrosive substances, this pump can function effectively at both low and high temperatures (up to 150°C) with a solid particle content of less than 5%. It is designed to withstand corrosion, making it a cost-effective substitute for more expensive materials such as titanium and Monel alloys commonly used in pumps.
It can be used in biotechnology, chemical processing, mining, metal processing, textile manufacturing, power generation, food processing, pulp and paper, electroplating, wastewater management, renewable energy, and other industrial sectors.
Fluorine plastic lining self- priming centrifugal pump performance parameters of the table
| Model No | Flow Capacity
(m3/h) |
Pump Head
(m) |
Motor Power
(KW) |
Rotating Speed
(r/min) |
Self-priming height(m) | Self-priming times(s) | Efficiency
(%) |
Shaft power
(KW) |
NPSH(m) | Diameter(mm) | |
| Inlet | outlet | ||||||||||
| 25FZB-20LP | 1.5 | 19 | 2.2 | 2900 | 0.7 | 180 | 10 | 0.78 | 3 | 25 | 25 |
| 3.6 | 18 | 20 | 0.88 | ||||||||
| 6 | 16 | 25 | 1.05 | ||||||||
| 40FZB-20P | 5 | 22 | 3 | 2900 | 1 | 180 | 35 | 0.86 | 3 | 40 | 50 |
| 8 | 20 | 42 | 1.04 | ||||||||
| 12 | 17 | 46 | 1.21 | ||||||||
| 40FZB-30L | 5 | 32 | 4 | 2900 | 3 | 150 | 34 | 1.28 | 3.5 | 40 | 50 |
| 8 | 30 | 48 | 1.36 | ||||||||
| 12 | 28 | 45 | 2.03 | ||||||||
| 50FZB-20P | 8 | 22 | 3 | 2900 | 1 | 180 | 35 | 1.37 | 3 | 50 | 50 |
| 12 | 20 | 42 | 1.56 | ||||||||
| 15 | 17 | 40 | 1.74 | ||||||||
| 50FZB-30L | 8 | 32 | 4 | 2900 | 3 | 150 | 24 | 2.91 | 3.5 | 50 | 50 |
| 12 | 30 | 29 | 3.38 | ||||||||
| 15 | 28 | 30 | 3.82 | ||||||||
| 50FZB-45L | 8 | 47 | 7.5 | 2900 | 3 | 150 | 24 | 4.27 | 3.5 | 50 | 40 |
| 12 | 45 | 35 | 4.20 | ||||||||
| 15 | 43 | 32 | 5.49 | ||||||||
| 50FZB-70L | 8 | 72 | 15 | 2900 | 3 | 150 | 20 | 7.85 | 4 | 50 | 32 |
| 12 | 70 | 26 | 8.80 | ||||||||
| 15 | 68 | 23 | 12.08 | ||||||||
| 65FZB-30L | 15 | 32 | 7.5 | 2900 | 3 | 200 | 37 | 3.54 | 4 | 65 | 50 |
| 25 | 30 | 42 | 4.87 | ||||||||
| 35 | 27 | 41 | 6.28 | ||||||||
| 65FZB-45L | 15 | 47 | 11 | 2900 | 3 | 180 | 30 | 6.40 | 4 | 65 | 40 |
| 25 | 45 | 42 | 7.30 | ||||||||
| 35 | 38 | 44 | 8.24 | ||||||||
| 65FZB-70L | 15 | 72 | 22 | 2900 | 3 | 180 | 30 | 9.81 | 4 | 65 | 40 |
| 25 | 70 | 41 | 11.63 | ||||||||
| 35 | 65 | 42 | 14.76 | ||||||||
| 80FZB-30L | 35 | 35 | 11 | 2900 | 3.5 | 180 | 51 | 6.55 | 4.5 | 80 | 65 |
| 50 | 32 | 63 | 6.92 | ||||||||
| 60 | 28 | 56 | 7.30 | ||||||||
| 80FZB-45L | 35 | 47 | 15 | 2900 | 3.5 | 200 | 45 | 9.96 | 4.5 | 80 | 65 |
| 50 | 45 | 53 | 11.57 | ||||||||
| 60 | 42 | 48 | 14.31 | ||||||||
| 80FZB-70L | 35 | 72 | 30 | 2900 | 3.5 | 250 | 45 | 15.26 | 5 | 80 | 50 |
| 50 | 70 | 50 | 19.08 | ||||||||
| 60 | 65 | 43 | 24.72 | ||||||||
| 100FZB-30L | 65 | 32 | 18.5 | 2900 | 3.5 | 200 | 56 | 10.12 | 6 | 100 | 80 |
| 100 | 30 | 80 | 10.22 | ||||||||
| 110 | 28 | 64 | 12.18 | ||||||||
| 100FZB-45L | 65 | 46 | 30 | 2900 | 4 | 250 | 48 | 16.97 | 6 | 100 | 80 |
| 100 | 45 | 55 | 22.30 | ||||||||
| 110 | 40 | 48 | 24.98 | ||||||||
